Networks

View Networks

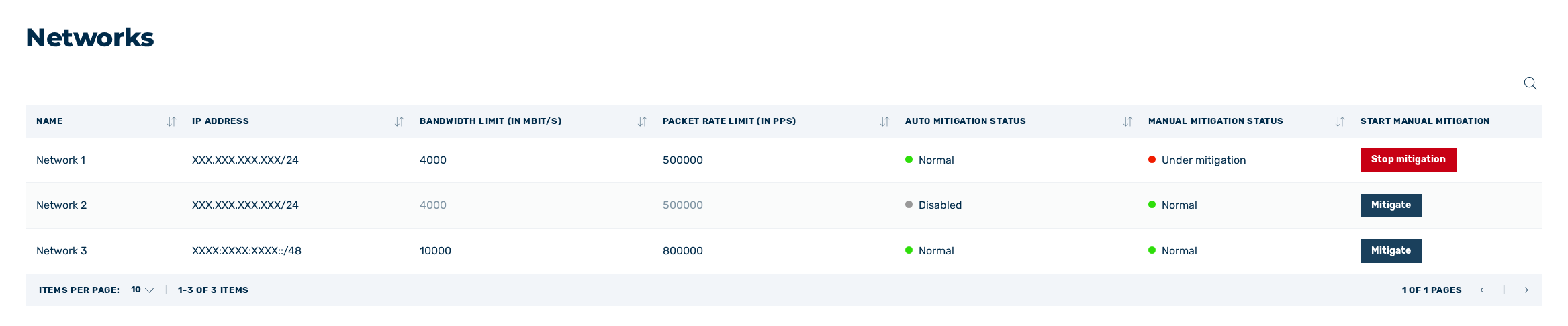

The Networks view provides an overview of the networks, the IP address ranges of the networks, the configured packet rate limit (in packets/s), the configured bandwidth limit (in MBit/s), and the mitigation status.

The following information is available:

Name	Definition
Name	The name of the network.
IP Address	The IP address of the network.
Bandwidth limit (in MBit/s)	The maximum bandwidth allowed for your network.NoteIf the network protection switch under Auto Actions is disabled, all values defined prior to deactivation are shown in grey.NoteIf the thresholds are defined in percent rather than MBit/s, the limit appears in MBit/s with a percentage in parentheses.
Packet rate limit (in PPS)	The maximum number of packets per second allowed on the network.NoteIf the network protection switch under Auto Actions is disabled, all values defined prior to deactivation are shown in grey.NoteIf the thresholds are defined in percent rather than Packets/s, the limit appears in Packets/s with a percentage in parentheses.
Auto mitigation status	Shows the status of mitigation: Disabled : Automatic mitigation is disabled. Under mitigation : Mitigation has been initiated. Normal : Mitigation has been completed.
Manual mitigation status	Shows the status of manual mitigation: Under mitigation : A manual mitigation has been initiated. Normal : Manual mitigation has been completed.
Start Manual mitigation	Open the Mitigate network or IP address(es) dialog to start mitigation for the selected network.

In addition, you have the following management and configuration options available:

Name	Definition
	The icon enables you to search specifically for names, IP addresses, bandwidth, and packet rates.
	The icon allows you to sort individual columns.
	The mitigation icon next to the Networks view in the left navigation bar indicates whether at least one mitigation is running.
